Ericsson Amateur Transceiver on ISS


There are currently two (2) Ericsson Amateur Radio transceivers on board ISS. One is configured for the 2-meter band (144 - 146 MHz) and the other for UHF (435 - 438 MHz). The 2-meter system is currently being used for FM Voice links and is connected to the Sirius mono-band (147 MHz) antenna mounted on the FBG module.  In the near future, some of the Amateur Radio equipment may be re-located into the Service Module with access to the new set of Amateur Radio antennas installed in 2002.   Most of the original hardware for this project came from the SAREX/ARISS amateur radio project for the Space Shuttle program.  The Ericsson radios were used extensively from 2001 - 2003 as the primary Amateur Radio link  for School Schedules and random voice contacts on the Amateur Radio bands.  In December 2003 a new Kenwood D700 radio was installed as the primary Voice/Packet Amateur Radio.  The Ericsson Radio will still used for other projects in the future, including UHF Slow Scan TV.


Aug 2002 Sergei Y. Treschev

Sergei is  holding the Ericsson 2-Meter Radio.  In the background you can see the AMSAT Packet Module.

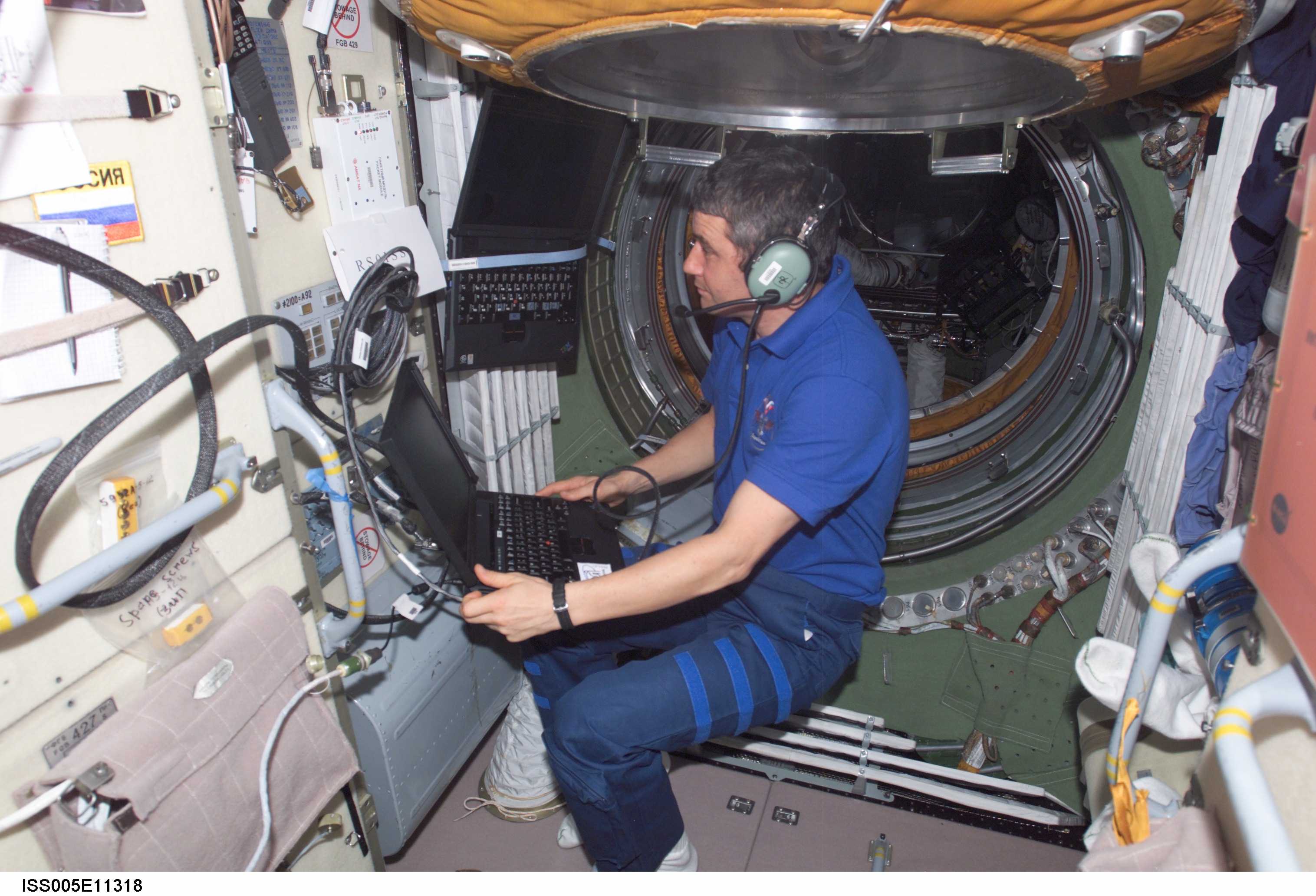

Nov 2002 Valery Korzun

Valery can be seen holding the computer while talking on the Ericsson Radio.  The PTT switch is in his left hand.

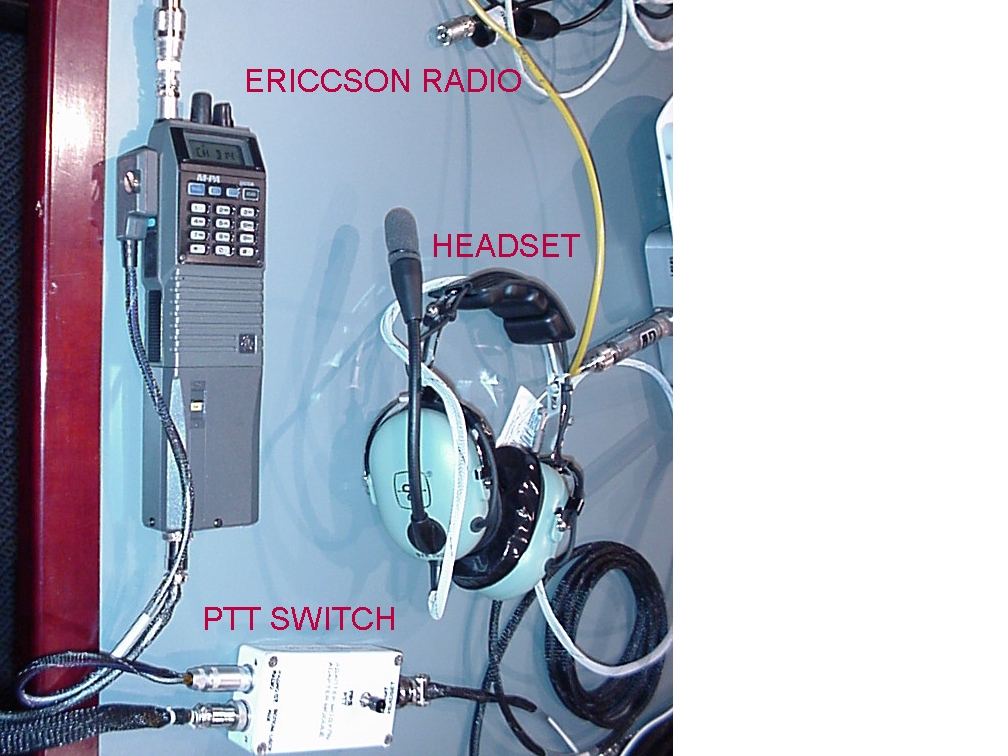

Ericsson radio:  There are 2 of these radios on ISS.  One for the 2-meter band (144 - 146 MHz) and one for the 70 centimeter band (435 - 438 MHz).  This picture also shows the David Clark Headset and the Push to Talk button. ISS Phase 1, Amateur Radio system Includes: Ericcson transceiver, Packet Module, Headset and Push to Talk cable button .  The Sony speakers will be added later.

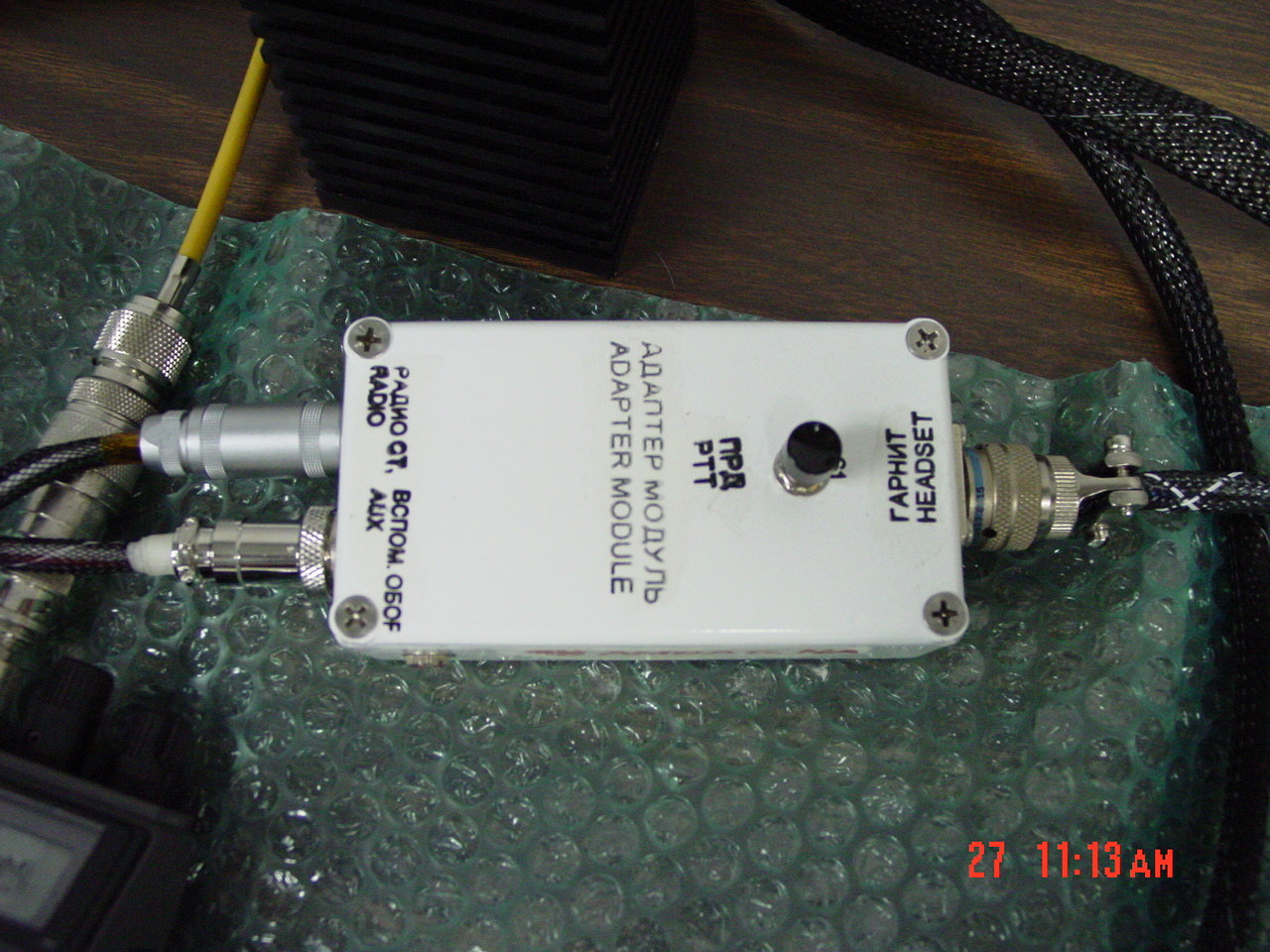

Push to Talk button:

Controls the Ericsson transceiver

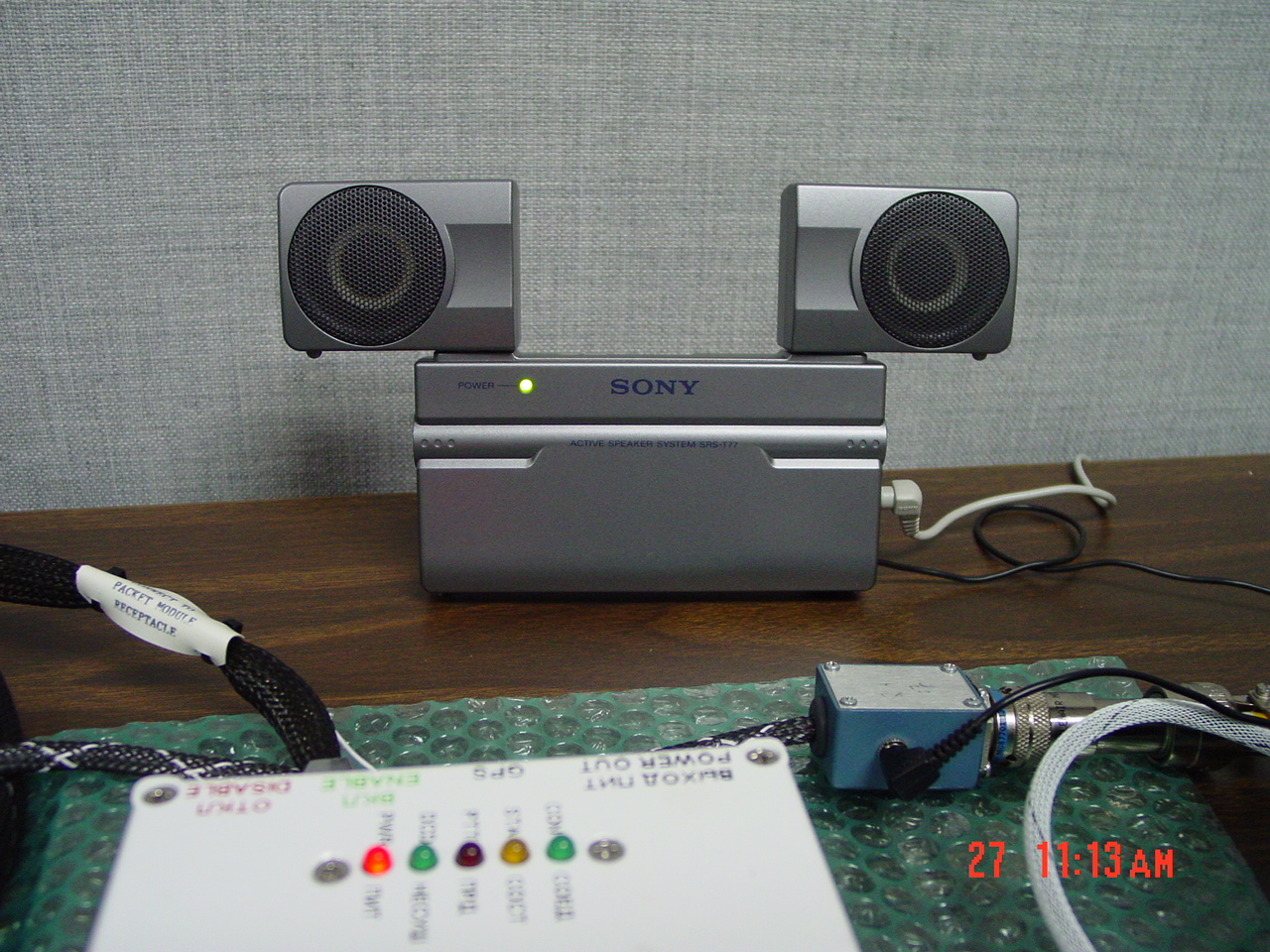

Speaker kit:  The existing Phase 1 system does not support an external speaker port.  The ISS crew requested a speaker connection so that other crew members can also listen.  The new cable adapter (small blue box) will be flown on a future mission.  The speakers are already on ISS VOX SSTV adapter:

Sergej Samburov (L) and Lou McFadin are shown holding the new VOX SSTV adapter.  This using will allow SSTV and other VOX operations.
